Wire Rope Clips–WRC001

Home CHAIN FITTINGS Wire Rope Clips–WRC001

Wire Rope Clips–WRC001

Additional information

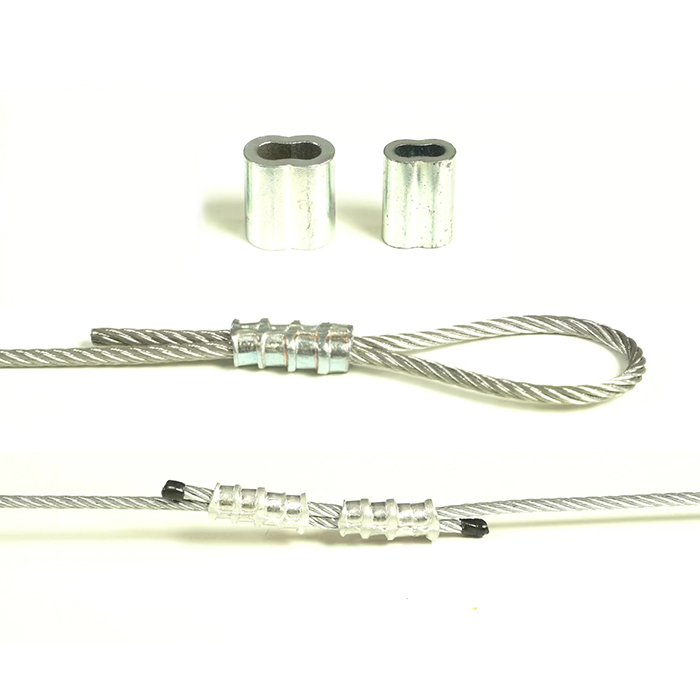

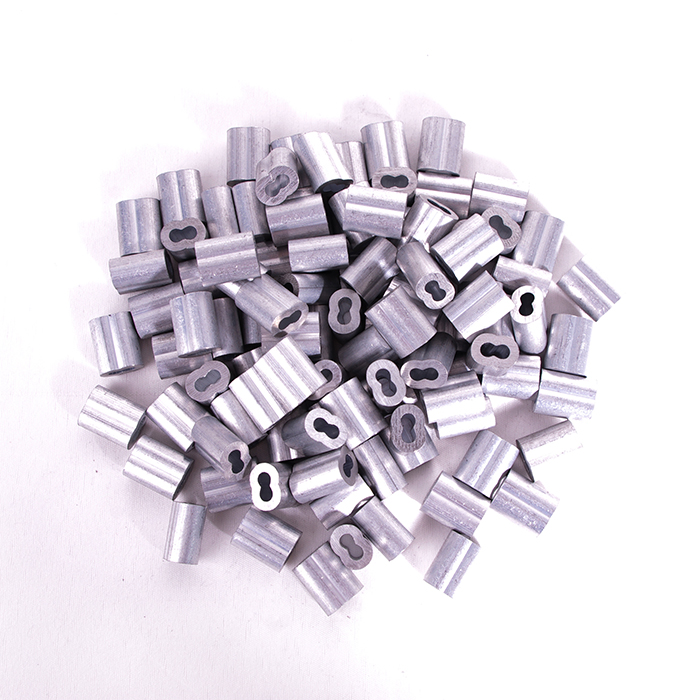

Product Name: Wire Rope Aluminum Sleeve
Material: Aluminum ; Color: Silver;
Economical solution for fixing and transporting general purpose cable.
Suitable for dog leashes, clothes lines or anything else that require strong cable.
CHAIN FITTINGS, Wire rope clips, Featured Products

Description

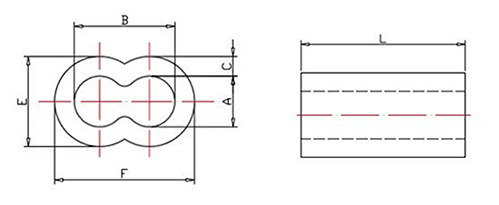

PART NO. SIZE A B C D L WEIGHT

Kgs/100Pcs
in mm in mm in Mm in mm in mm in mm
SL980364 3/64 1.19 1/16 1.59 1/8 3.18 9/64 3.6 13/64 5.2 3/8 9.5 0.276
SL980116 1/16 1.58 5/64 1.98 5/32 3.97 11/64 4.4 1/4 6.4 3/8 9.5 0.433
SL980564 5/64 1.98 3/32 2.38 3/16 4.76 13/64 5.2 5/16 7.9 3/8 9.5 0.645
SL980332 3/32 2.38 1/8 3.18 1/4 6.35 9/32 7.1 13/32 10.3 1/2 12.7 1.45
SL980108 1/8 3.18 5/32 3.97 5/16 7.94 11/32 8.7 1/2 12.7 5/8 15.8 2.70
SL980532 5/32 3.97 3/16 4.76 3/8 9.53 3/8 9.53 9/16 14.3 11/16 17.4 3.67
SL980316 3/16 4.76 7/32 5.56 7/16 11.11 7/16 11.11 21/32 16.7 1 25.4 7.18
SL980732 7/32 5.56 1/4 6.35 1/2 12.70 1/2 12.7 3/4 19 1-1/16 26.9 10.00
SL980104 1/4 6.35 9/32 7.14 9/16 14.29 17/32 13.5 13/16 20.6 1-1/8 28.5 11.76
SL980932 9/32 7.14 5/16 7.94 5/8 15.88 9/16 14.3 7/8 22.2 1-3/16 30.1 13.62
SL980516 5/16 7.94 3/8 9.53 23/32 19.05 11/16 17.5 1-1/32 26.2 1-1/4 31.7 20.94
SL980308 3/8 9.53 7/16 11.11 27/32 22.23 3/4 19.1 1-5/32 29.4 1-7/16 36.5 28.18
SL980716 7/16 11.11 1/2 12.7 1 25.40 15/16 23.8 1-7/16 36.5 1-11/16 42.8 52.00
SL980102 1/2 12.7 9/16 14.29 1-1/8 28.58 1-1/16 27 2 41.3 2 50.8 80.15
SL980916 9/16 14.29 5/8 15.88 1-1/4 31.75 1-1/8 28.6 2-1/8 44.5 2-1/8 53.9 98.88
SL980508 5/8 15.88 11/16 17.46 1-3/8 34.93 1-1/4 31.8 2-1/2 49.2 2-1/2 63.5
