Eyebolts–E001
|
Color
|
bright polished
|
|
Standard
|
DIN GB ISO JIS BA ANSI
|
|
Grade
|
SUS201, SUS304, SUS316,
|
|
Brade
|
HIGOOD |
|
Used
|
building , industry ,machinery
|
Description
| Product Code | Size (in) | W．L．L (Lbs) | Dimensions(in) | Weight Each (kg／pc) | ||||||||

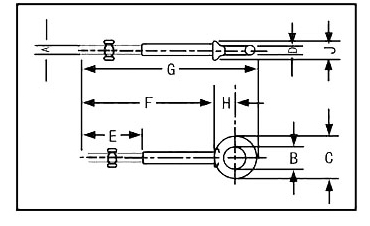

| A | B | C | D | E | F | G | H | J | ||||
| HLF03E01 | 1／4×2 | 650 | 0.25 | 0.5 | 0.88 | 0.19 | 1.5 | 2 | 2.94 | 0.5 | 0.47 | 0.030 |
| HLF03E02 | 1／4×4 | 650 | 0.25 | 0.5 | 0.88 | 0.l9 | 2.5 | 4 | 4.94 | 0.5 | 0.47 | 0.04l |
| HLF03E03 | 5／16×21／4 | 1200 | 0.31 | 0.62 | 1.12 | 0.25 | 1.5 | 2.25 | 3.5 | 0.69 | 0.56 | 0.057 |
| HLF03E04 | 5／l6×41／4 | 1200 | 0.3l | 0.62 | 1.12 | 0.25 | 2.5 | 4.25 | 5.5 | 0.69 | 0.56 | 0.085 |
| HLF03E05 | 3／8×21／2 | 1550 | 0.38 | 0.75 | 1.38 | 0.31 | 1.5 | 2.5 | 3.97 | 0.78 | 0.66 | 0.097 |
| HLF03E06 | 3／8×41／2 | 1550 | 0.38 | 0.75 | 1.38 | 0.3l | 2.5 | 4.5 | 5.97 | 0.78 | 0.66 | 0.115 |
| HLF03E07 | 1／2×31／4 | 2600 | 0.5 | 1 | 1.75 | 0.38 | 1.5 | 3.25 | 512 | 1 | 0.9l | 0.194 |
| HLF03E08 | 1／2×6 | 2600 | 0.5 | l | 1.75 | 0.38 | 3 | 6 | 7.88 | l | 0.9l | 0.258 |
| HLF03E09 | 5／8×4 | 5200 | 0.62 | 1.25 | 2.25 | 0.5 | 2 | 4 | 6.44 | 1.3l | 1.12 | 0.312 |
| HLF03E10 | 5／8×6 | 5200 | 0.62 | 1.25 | 2.25 | 0.5 | 3 | 6 | 8,44 | 1.3l | 1.12 | 0.465 |
| HLF03Ell | 3／4×41／2 | 7200 | 0.75 | 1.5 | 2.75 | 0.62 | 2 | 4.5 | 7.44 | 1.56 | 1.38 | 0.657 |
| HLF03E12 | 3／4×6 | 7200 | 0.75 | 1.5 | 2.75 | 0.62 | 3 | 6 | 8.94 | 1.56 | 1.38 | 0.76l |
| HLF03E13 | 7／8×5 | 10600 | 0.88 | 1.75 | 3.25 | 0.75 | 2.5 | 5 | 8.46 | 1.84 | 1.56 | 1.O23 |
| HLF03E14 | 1×6 | 13300 | l | 2 | 3.75 | 0.88 | 3 | 6 | 9.97 | 2.O9 | 1.8I | 1.665 |
| HLF03E15 | 1×9 | 13300 | 1 | 2 | 3.75 | 0.88 | 4 | 9 | 12.97 | 2.09 | 1.8l | 1.920 |
| HLF03El6 | ll／4×8 | 21000 | 1.25 | 2.5 | 4.5 | l | 4 | 8 | 12.72 | 2.47 | 2.28 | 2.955 |
| HLF03E17 | 11／4×12 | 21000 | 1.25 | 2.5 | 4.5 | 1 | 4 | 12 | 16.72 | 2.47 | 2.28 | 3.614 |
| HLF03E18 | 11／2×l5 | 24000 | 1.5 | 3 | 5.5 | 1.25 | 6 | 15 | 20.75 | 3 | 2.75 | 6.477 |
